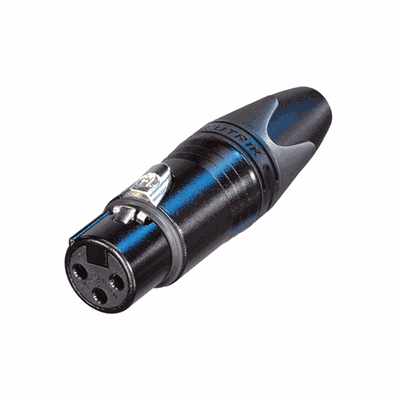

Neutrik NC3FXX-B -3 pole female cable connector with black metal housing and gold contacts. The new generation of the globally recognized XLR cable connector standard. The successor to the X series offers several new features, more reliable, easier assembly and better contact and cable clamp integrity.
Technical Specifications:
Capacitance:≤ 4 pF
Contact resistance:≤ 3 mΩ
Rated voltage 1min:1.5 kVdc
Insulation resistance:> 10 GΩ
Rated current per 1 contact:16 A
Rated voltage:50 V
Cable diameter: 3.5 - 8.0 mm
Force required to connect connectors:≤ 20 N
Force required to disconnect connectors:≤ 20 N
Lifetime:> 1000 connection cycles
Conductor: max. 2.5 mm², max. 14 AWG
Soldering
Cable cap:polyurethane
Contact surface treatment:0.2 µm Au layer on 2 µm Ni
Contact material:Bronze (CuSn8)
Polyamide (PA 6.6 30% GR)
Lock:Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
Connector body:Zinc diecast (ZnAl4Cu1)
Connector body finish:black chrome
