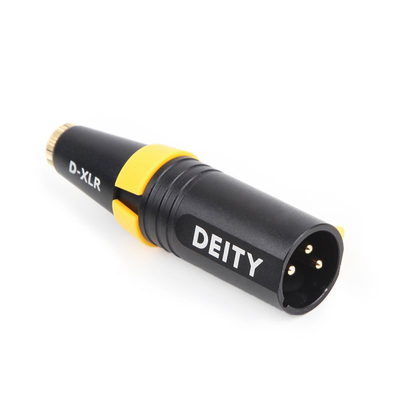

The D-XLR converts 12-48V phantom power to 3V "Plug in Power", allowing microphones with 3.5mm TRS connectors to be operated via phantom power. The D-XLR is specifically designed for Deity's V-Series microphones to power their smart TRRS connectors from a standard XLR connector via PIP. Features:
Solid metal construction
sturdy belt clip
adapts 48V to 3V PIP (Plug in Power)
works with common 3.5mm microphones
D-XLR converts 12-48V phantom power to 3V "Plug in Power", allowing microphones with 3.5mm TRS connectors to operate via phantom power. The D-XLR is specifically designed for Deity V-Series microphones to power their smart TRRS connectors from a standard XLR connector via PIP.At the same time, D-XLR has no negative impact on microphones like the V-Mic D3 Pro in terms of signal-to-noise ratio, absolute harmonic distortion and sensitivity. The D-XLR uses a standardized 3.5mm TRS* connector with a gold-plated surface, so the contacts on the connector stick better and don't loosen.*It does not work with 3.5mm lavalier microphones wired for Sony UWP.Compatible microphones:
A.Lav
V.Lav
V-Mic D3
V-Mic D3 Pro
other standard TS/TRS microphones
Technical specifications:
Weight: 29.2 g
Dimensions: 69.7 x 19 x 19 mm
Voltage: 12-48 V (phantom)
Bias voltage: 3V
Signal-to-noise ratio: 80.9 dB
THD: 0%
Input: 3.5mm standard TRS
Output: 3-pole XLR
Construction: CNC aluminum
