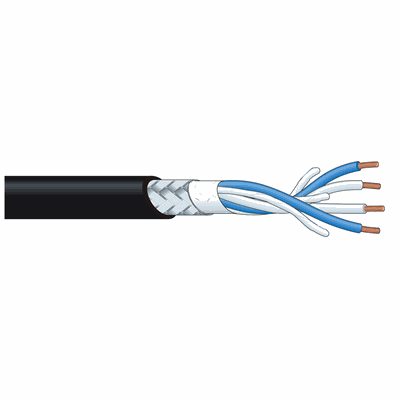

Canare L-4E6S Is a premier Star Quad cable for all handheld microphone applications. Flexible, satin smooth to the touch and extra strong, this standard diameter, 24 AWG cable fits perfectly in all XLR-type audio connectors. Forty separate strands in each conductor eliminate breakage due to flexing. Applications:
Microphones
Portable Applications
Audio Rack Wiring
PA Systems
Audio Patch Cords
Features:
Braided Copper Shield
Flexible in Extreme Cold Weather
Cross Linked PE Insulation
Reduced Handling Noise
Rejects EMI and RFI
10 Matte Color Jacket Selections
MECHANICAL SPECIFICATIONS
Model
Std.Lng.ft.(m)
WtStd.Lng.lbs(kgs)
Nom.O.D.in.(mm)
JacketNom.Thick.in.(mm)
BrittlePointF°(C°)
No.ofCond.
Insul.Type*Thickmil
Cond-AWG(Qty./mil)Cross Sec.Areamil.?**QuadAWG
PitchTwistQuadin.(mm)
ShieldCover-age
L-4E6S
656(200)1000(305)
24(11)35(16)
.236(6.00)
PVC.044(1.12)
-56(-49)
42 Blue2 Wht
IPE15.7
AC - #2440/3.15310#21
.79(20)
>95%TACBraid
***Capacitance between twin Blue and twin White conductors.†Capacitance between conductors to shield.
ELECTRICAL PERFORMANCE/QUAD
Model
Cond.D.C.R.ohm/1000ft(ohm/100m)
ShieldD.C.R.ohm/1000ft(ohm/100m)
Nom.Cap.*** pF/m
Nom.Cap.†pF/m
Nom.Imp.(ohm)
Nom.Atten.V/1000ft(V/100m)
GroupDelayTimenS/ft(nS/m)
L-4E6S
<29.9(<9.8)
<9.1(<3.0)
150
185
44
0.9(0.3)
1.80(5.9)
